BRAND NEW ETERNA TLS68EX IP66 16 AMP OUTDOOR WEATHERPROOF TIME DELAY SWITCHES GREY

Description

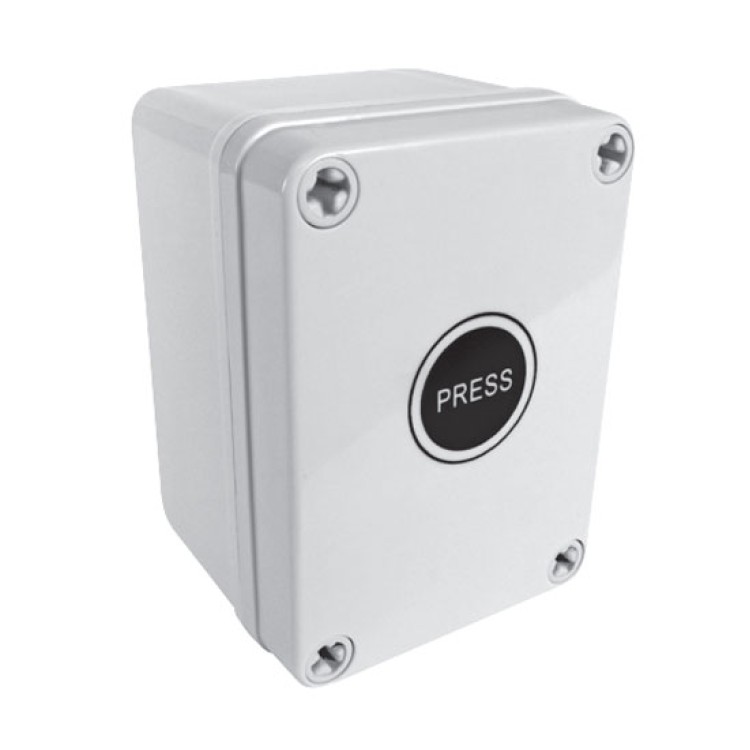

This is the Eterna Lighting TLS68EX IP66 rated Weatherproof Time Delay Switch. The timer can be triggered by applying a live connection to the “trigger” terminal. This can be done using a momentary switch for example, in lighting applications; or an unswitched link for applications such as extractor fan over-run.

IP66 16A Weatherproof Time Delay Switch in Grey – Specs
Multi range delay function from 2 seconds to 2 hours
Incandescent 16 Amp max, fluorescent 6 Amp max, compact fluorescent 3 Amp max, low voltage 3 Amp max
Multiple accurate time settings using DIP switches and rotary adjuster
Multi point switching, connect two or more units in parallel / ABS
IP Rating: IP66 rated, waterproof switch, ideal for outdoor use
Finish: Grey
CE Mark
Double insulated: This switch is double insulated; do not connect any part to earth
This is not a two-wire system and requires neutral connection
Multi range delay function from 2 seconds to 2 hours: reduces energy consumption
Dimensions: 80mm width x 110mm length x 70mm depth/projection from wall
It is an IP66 16A Electrical Outdoor Time Delay Switch, suitable for indoor and outdoor use
Multi-Point Switching: For switching the load from multiple locations simply connect two or more units in parallel; please note, All switches must share the same power supply.
IP66 16A Weatherproof Time Delay Switch in Grey – Load Specification
– Incandescent lighting loads – 16A maximum
– Fluorescent lighting loads – 6A maximum
– Compact fluorescent/low energy lighting loads – 3A maximum
– Low voltage lighting loads – 3A maximum (Note: a maximum of 6 Fluorescent light Fittings is recommended with total power factor correction capacitance not exceeding 40µf.)
– Fans and ventilation equipment – 3A maximum
– LED load: max. 300W
